Problem

I have about 40 linux containers running, and I want to be notified when any of them are close to maxing out its disk space.

Solution

I’ve decided to use the (Telegraf + Influx + Grafana) stack again. Previously, I’ve used it for alerting me on high temperatures.

So here goes configuring another 40 plus linux containers…

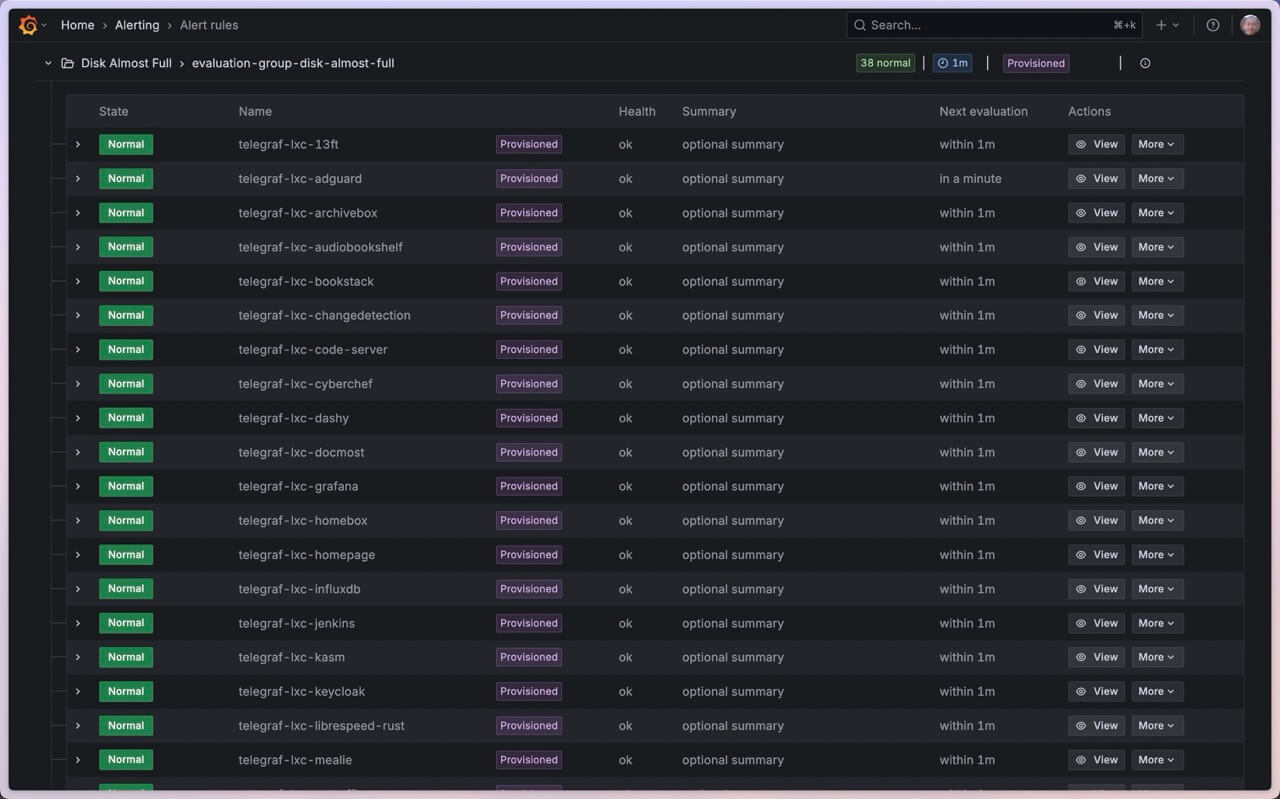

Look how beautiful my alerts are :)

alt

1. InfluxDB

In the InfluxDB web console, create:

a new Bucket - see here
an All Access API token - see here

2. Telegraf

Download the Telegraf binary from their GitHub release page.

The telegraf.conf is simple because we will be just monitoring the root disk (make sure to replace those values below!):

[global_tags]
[agent]
  interval = "10s"
  round_interval = true
  metric_batch_size = 1000
  metric_buffer_limit = 10000
  collection_jitter = "0s"
  flush_interval = "10s"
  flush_jitter = "0s"
  precision = "0s"
[[inputs.disk]]
  mount_points = ["/"]

[[outputs.influxdb_v2]]
  urls = ["$INFLUXDB_URL_HERE"]
  organization = "$INFLUXDB_ORG_NAME_HERE"
  bucket = "$INFLUXDB_BUCKET_NAME_HERE"
  token = "$INFLUXDB_API_TOKEN_HERE"

Run telegraf with this configuration:

telegraf -config telegraf.conf

Verify in InfluxDB Web UI that metrics are being received.

3. Grafana

Here we will be creating an alert for a single linux container.

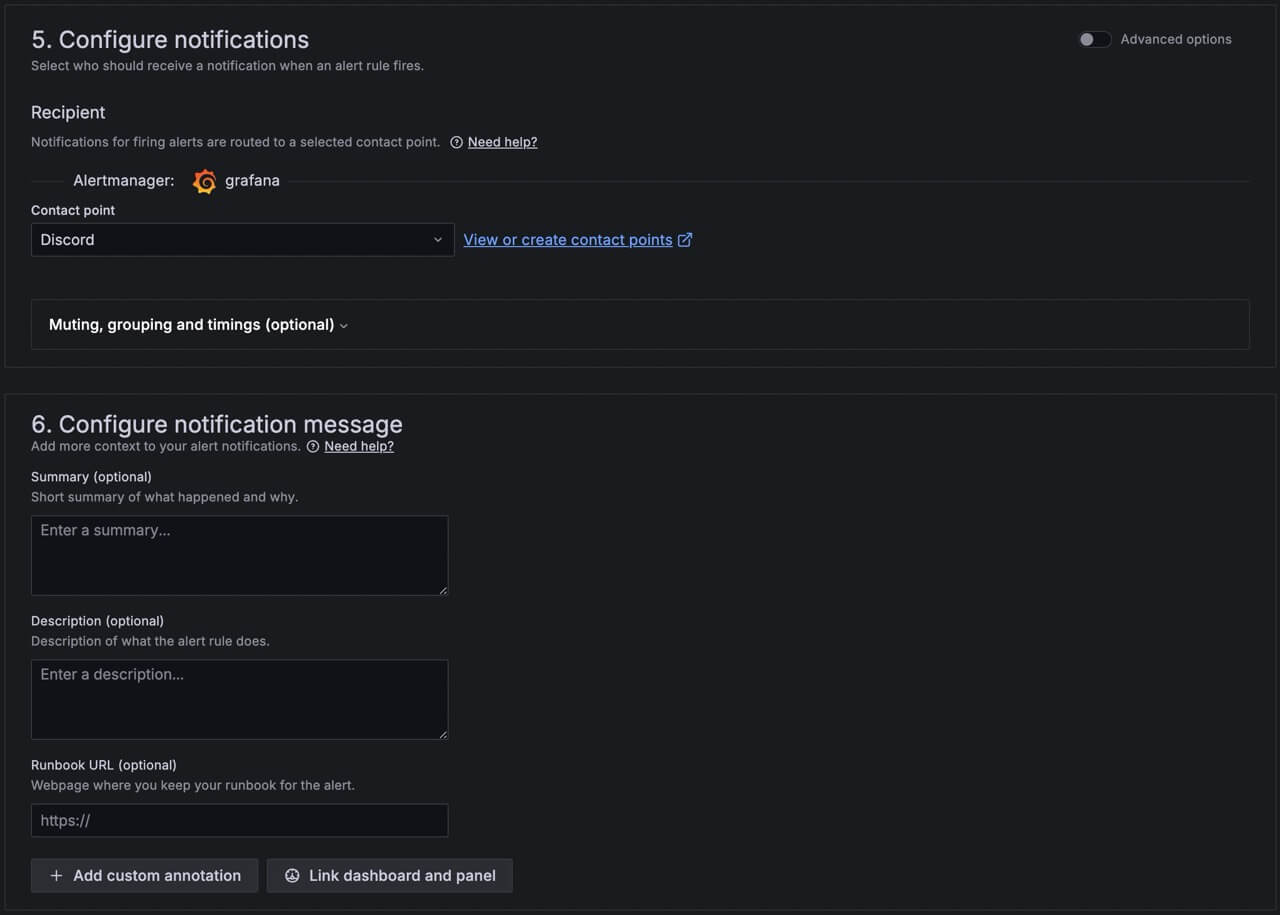

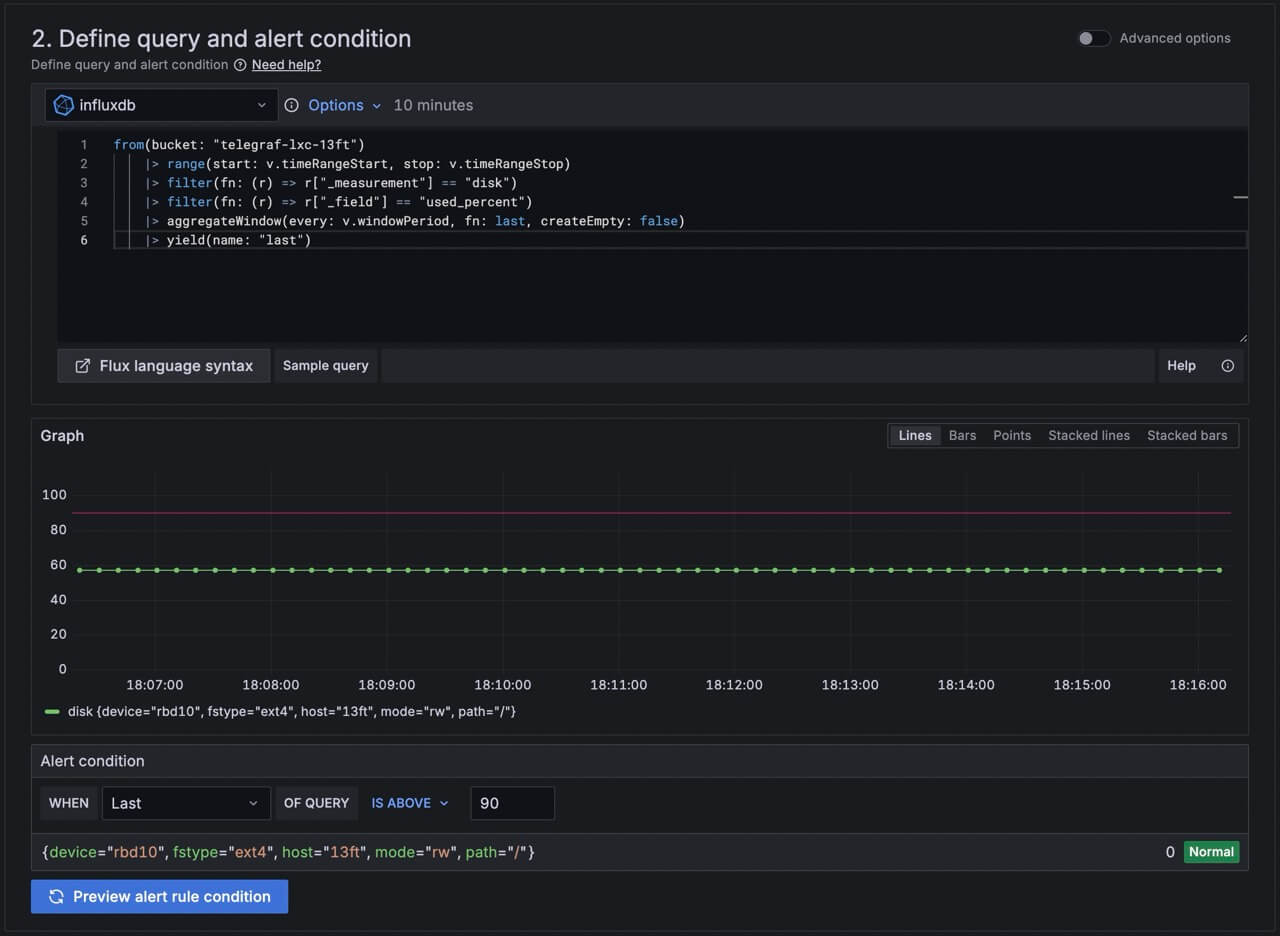

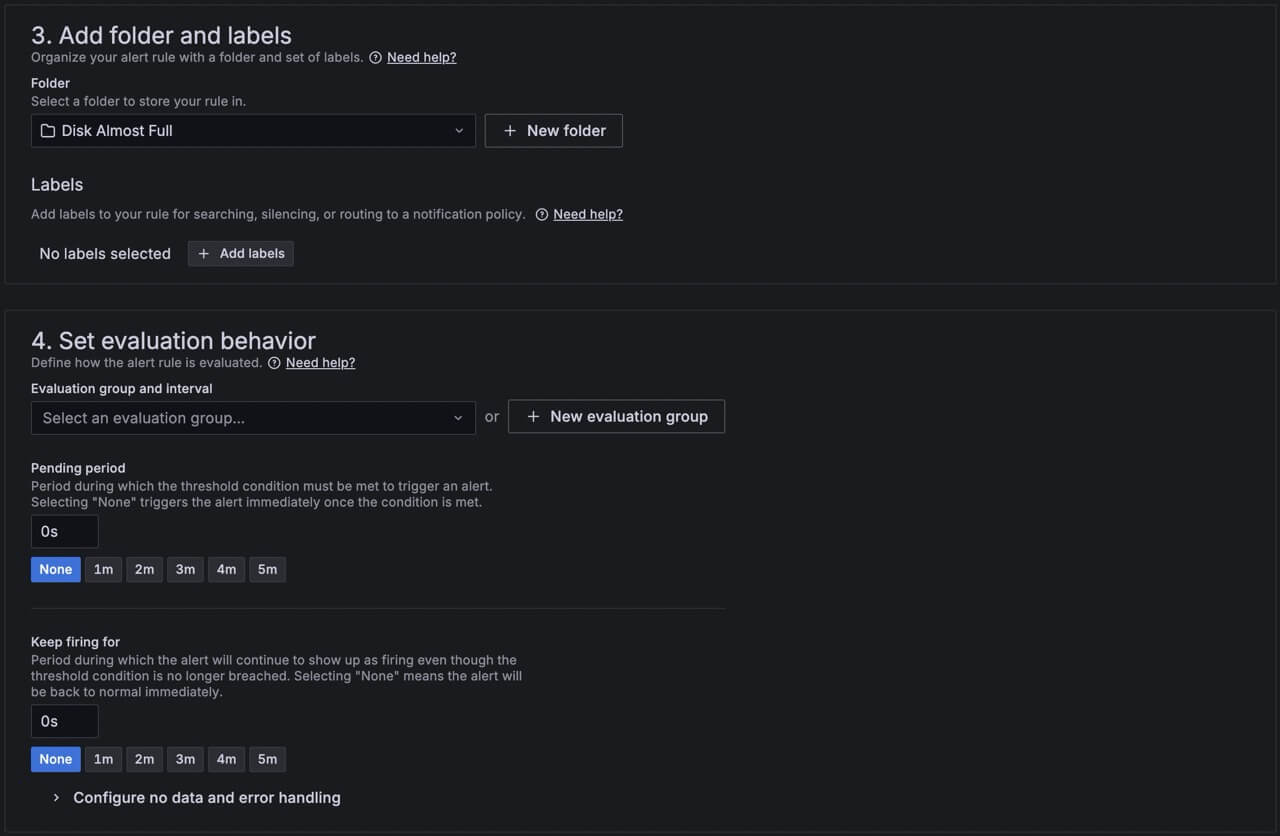

Let’s create a new rule:

alt

Automate for 40 Linux Containers

Now doing the same 3 steps above for 40 times is too much. I’m lazy. So I’ve written a script to automate all of this.

Here it is in Github: https://github.com/TheRealMarcusChiu/proxmox-scripts

Auto Telegraf & InfluxDB

To install Telegraf on all your Linux containers, and auto create buckets on InfluxDB, create a file proxmox-server-setup-lxcs.sh in your proxmox server:

#!/bin/bash

INFLUXDB_URL="REPLACE_ME"
INFLUXDB_API_TOKEN="REPLACE_ME"
INFLUXDB_ORG_ID="REPLACE_ME"
INFLUXDB_ORG_NAME="REPLACE_ME"
INFLUXDB_BUCKET_NAME_PREFIX="telegraf-lxc-"

pct list | grep running | while read line; do
    ID=$(echo "$line" | awk '{print $1}')
    NAME=$(echo "$line" | awk '{print $3}')

    INFLUXDB_BUCKET_NAME="$INFLUXDB_BUCKET_NAME_PREFIX$NAME"

    # Create telegraf bucket
    curl -X POST "$INFLUXDB_URL/api/v2/buckets" \
         -H "Authorization: Token $INFLUXDB_API_TOKEN" \
         -H "Content-type: application/json" \
         -d "{
               \"name\": \"$INFLUXDB_BUCKET_NAME\",
               \"orgID\": \"$INFLUXDB_ORG_ID\",
               \"retentionRules\": [{
                   \"type\": \"expire\",
                   \"everySeconds\": 604800
               }]
             }"

    echo "Updating container: $ID $NAME"
    pct exec $ID -- bash -c "apt update && apt-get update && apt install git -y"
    pct exec $ID -- bash -c "git clone https://github.com/TheRealMarcusChiu/proxmox-scripts.git"
    pct exec $ID -- bash -c "cd /root/proxmox-scripts && git pull"
    pct exec $ID -- bash -c "export INFLUXDB_URL=\"$INFLUXDB_URL\" && export INFLUXDB_API_TOKEN=\"$INFLUXDB_API_TOKEN\" && export INFLUXDB_ORG_NAME=\"$INFLUXDB_ORG_NAME\" && export INFLUXDB_BUCKET_NAME=\"$INFLUXDB_BUCKET_NAME\" && cd /root/proxmox-scripts/telegraf && /root/proxmox-scripts/telegraf/setup.sh > /root/proxmox-scripts/telegraf/log.txt"
    pct exec $ID -- bash -c "systemctl show -p SubState,ActiveState,Result telegraf > /root/proxmox-scripts/telegraf/output.txt"
    echo "Finished updating container: $ID $NAME"

done

Make it executable, then execute it:

chmod +x proxmox-server-setup-lxcs.sh
./proxmox-server-setup-lxcs.sh

Auto Grafana

To auto create alert rules on Grafana, create the following Python file create-grafana-alert-group.py:

import hashlib

header = """apiVersion: 1
groups:
  - orgId: 1
    name: evaluation-group-disk-almost-full
    folder: Disk Almost Full
    interval: 1m
    rules:
"""

alert_rule_template = """      - uid: ALERT_UID_HERE
        title: BUCKET_NAME_HERE
        condition: C
        data:
          - refId: A
            relativeTimeRange:
              from: 60
              to: 0
            datasourceUid: deu40om3f7xfkc
            model:
              intervalMs: 1000
              maxDataPoints: 43200
              query: |-
                from(bucket: "BUCKET_NAME_HERE")
                  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
                  |> filter(fn: (r) => r["_measurement"] == "disk")
                  |> filter(fn: (r) => r["_field"] == "used_percent")
                  |> aggregateWindow(every: v.windowPeriod, fn: last, createEmpty: false)
                  |> yield(name: "last")
              refId: A
          - refId: B
            datasourceUid: __expr__
            model:
              conditions:
                - evaluator:
                    params: []
                    type: gt
                  operator:
                    type: and
                  query:
                    params:
                      - B
                  reducer:
                    params: []
                    type: last
                  type: query
              datasource:
                type: __expr__
                uid: __expr__
              expression: A
              intervalMs: 1000
              maxDataPoints: 43200
              reducer: last
              refId: B
              type: reduce
          - refId: C
            datasourceUid: __expr__
            model:
              conditions:
                - evaluator:
                    params:
                      - 90
                    type: gt
                  operator:
                    type: and
                  query:
                    params:
                      - C
                  reducer:
                    params: []
                    type: last
                  type: query
              datasource:
                type: __expr__
                uid: __expr__
              expression: B
              intervalMs: 1000
              maxDataPoints: 43200
              refId: C
              type: threshold
        noDataState: NoData
        execErrState: Error
        annotations:
          description: optional description
          summary: optional summary
        isPaused: false
        notification_settings:
          receiver: Discord
"""

bucket_names = [
    "telegraf-lxc-13ft",
    "telegraf-lxc-adguard"
]

with open("disk-almost-full.yaml", "w") as file:
    file.write(header)

    for bucket_name in bucket_names:
        hashed = hashlib.sha256(bucket_name.encode()).hexdigest()
        short_hash = hashed[:14]

        new_text = alert_rule_template.replace("ALERT_UID_HERE", short_hash, 1)
        new_text = new_text.replace("BUCKET_NAME_HERE", bucket_name, 2)

        file.write(new_text)

In this file, modify bucket_names accordingly.

Run this:

python create-grafana-alert-group.py

This should output a file disk-almost-full.yaml.

Now in the Grafana server, put this file under /etc/grafana/provisioning/alerting/disk-almost-full.yaml.

Then restart the grafana server:

systemctl restart grafana-server

This will auto provision the alert rules accordingly. Verify on Grafana console UI.

Optional Delete the Alert Rules

Create a python file create-grafana-alert-group-deletion.py:

import hashlib

header = """apiVersion: 1
deleteRules:
"""

alert_rule_template = """  - orgId: 1
    uid: ALERT_UID_HERE
"""

bucket_names = [
    "telegraf-lxc-13ft",
    "telegraf-lxc-adguard"
]

with open("disk-almost-full-deletion.yaml", "w") as file:
    file.write(header)

    for bucket_name in bucket_names:
        hashed = hashlib.sha256(bucket_name.encode()).hexdigest()
        short_hash = hashed[:14]
        new_text = alert_rule_template.replace("ALERT_UID_HERE", short_hash, 1)
        file.write(new_text)
